Leírás

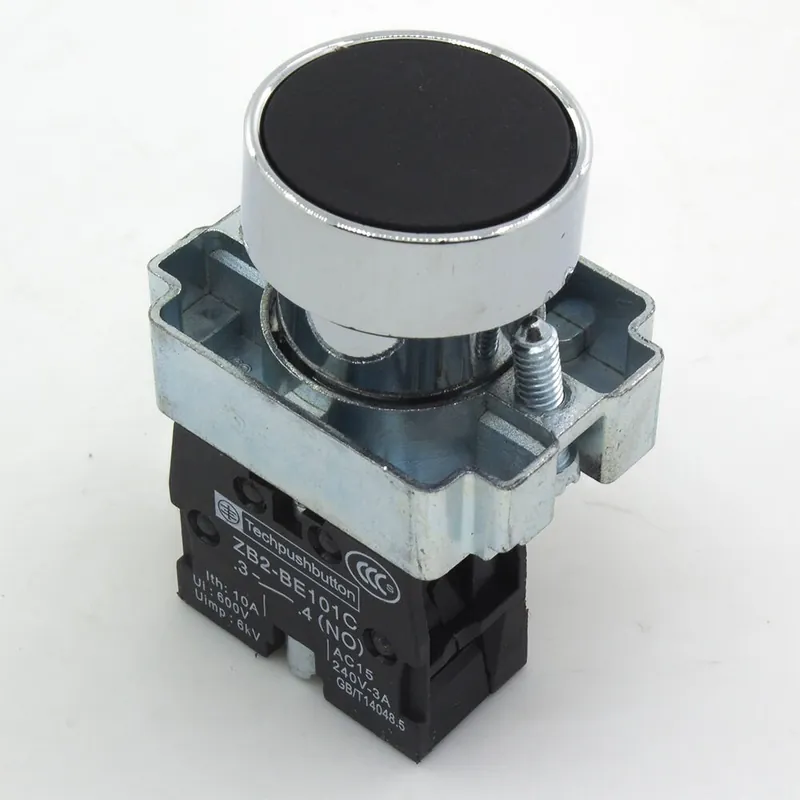

22mm XB2-B series push button with ?22 mm perforate dimensions
General
Model number 22mm XB2-B series
Mounting dimensions ?22
Contact resistance 50m? max
Insulation resistance 100M? min
Dielectric strength 2000Vac, 50Hz for 1min
Mechanical Life 2×105 cycles
Electrical life 5×104 cycles
Matched contact block NO or NC
IP degree IP40
Operation temperature -25 to 55°C
Operation humidity 35 to 85% RH, no-condensation
Alias name 22mm XB2-B series push button switch, pushbutto
