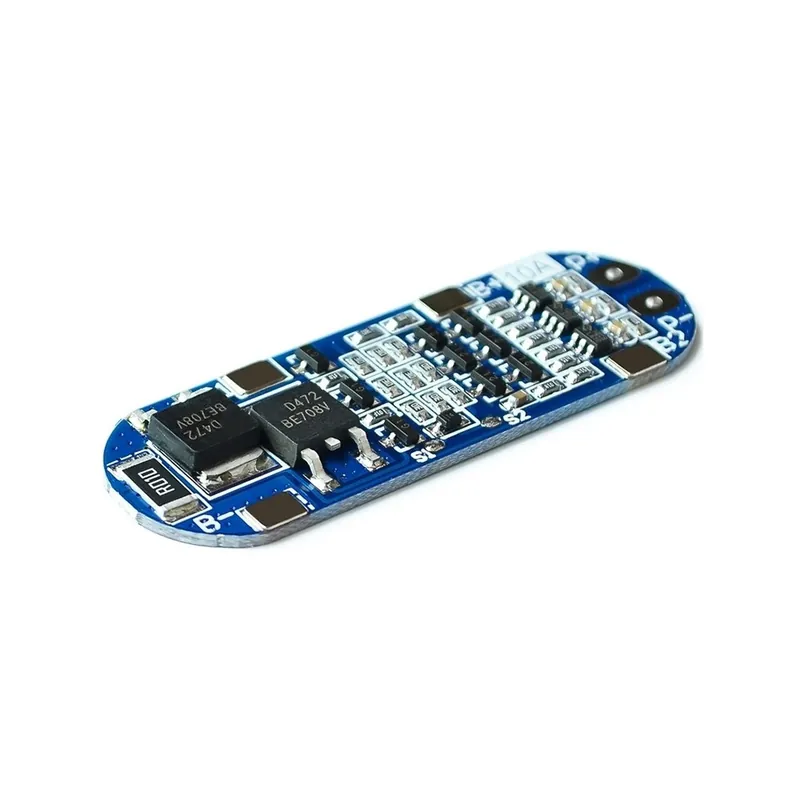

3S 10A Li-ion Lithium Battery 18650 Charger Protection Board 11.1V 12.6V
The attribute of the lithium battery protection board:
Model: HX – 3 s – FL10 – A charging voltage range: 4.25 / – 0.05 v to 4.35 v
Size: 53 * 17 * 4.0 mm discharge voltage range: 2.3 / – 0.05 v to 3.0 v
Maximum working current: 6-8 a working temperature: – 40 – 50 ℃
Maximum instantaneous current: 10 to 13 a storage conditions: – 40 – 80 ℃
Static electricity: less than 30 ua useful life: more than 30000 hours
Resistance: less than 100 m Ω short circuit protection, can protect, delay the recovery.
Charging voltage: 12.6 V – 13 V
