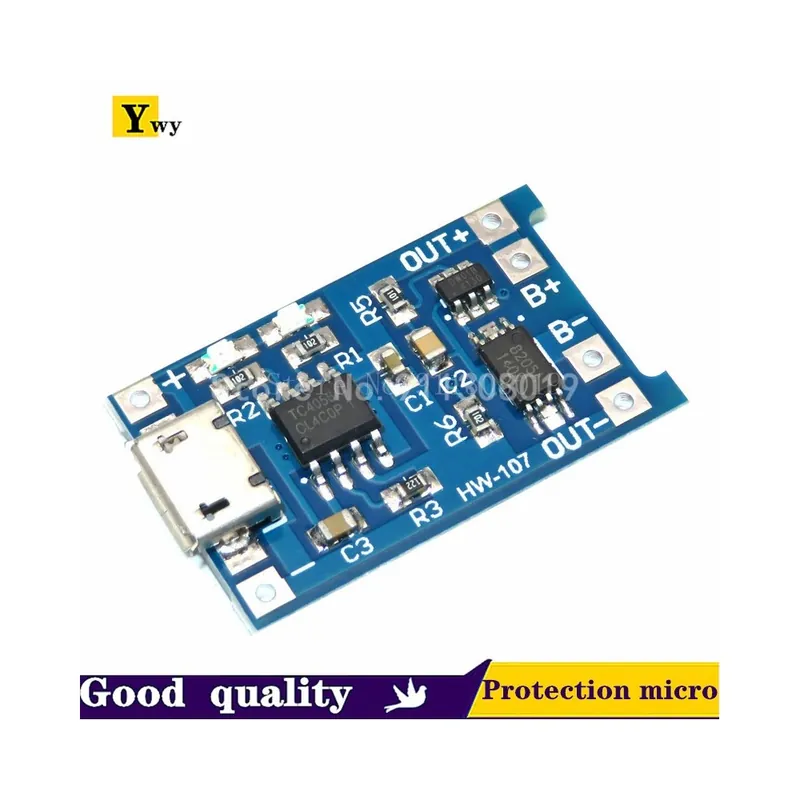

TP4056Micro:
Product parameters
Module name:Lithium Battery Charging Board
Charging mode:Linear charging
Charging current:1A(Adjustable)
Charging precision:1.5?
Input voltage:4.5V-5.5V
Full charge voltage:4.2V
Charge indicator:Red light charging,green light full charge
Input interface:micro USB
Working temperature:-10°~+85°
Size:22.4*17.4mmTP4056 USB:
Product parameters
Module name:Lithium Battery Charging Board
Charging mode:Linear charging
Charging current:1A(Adjustable)
Charging precision:1.5?
Input voltage:4.5V-5.5V
Full charge voltage:4.2V
Charge indicator:Red light charging,green light full charge
Input interface:mini USB
Working temperature:-10°~+85°
Size:22.4*17.4mm
18650Micro:
Product parameters
Input voltage:5V
Charging cut-off voltage:4.2V±1?
Maximum charging current:1000mA
Voltage and Current of Battery Overdischarge Protection:2.5V / 3A
Size:17.4*27.9mmTYPE-C:
Product parameters
Input voltage:5V
Charging cut-off voltage:4.2V±1?
Maximum charging current:1000mA
Voltage and Current of Battery Overdischarge Protection:2.5V / 3A
Size:17.4*27.9mm
