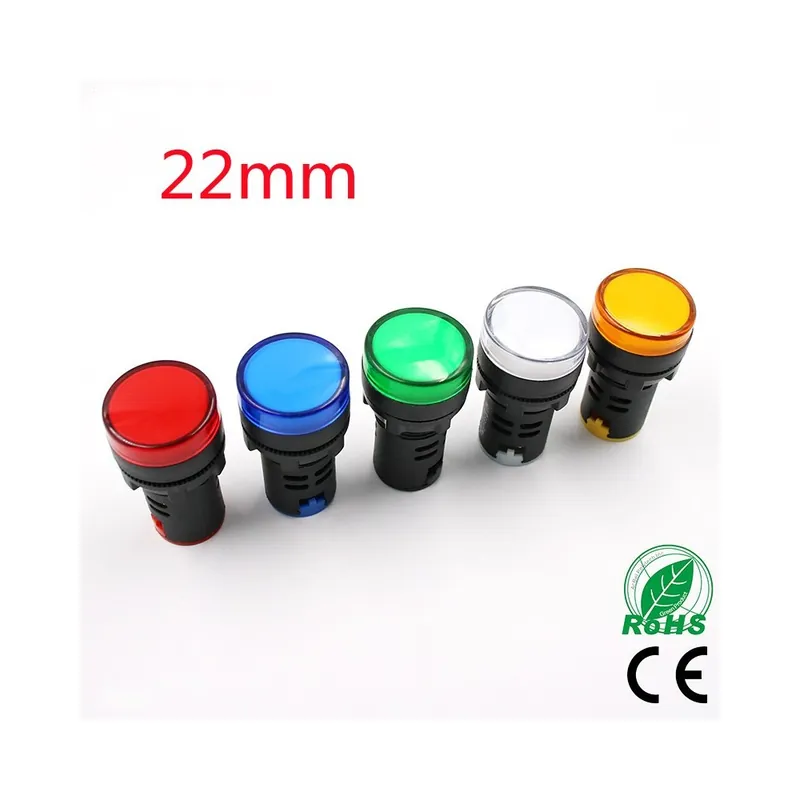

22mm LED Indicator Light 6V 12V 24V 36v 48v 110V 220V 380V Panel Mount LED Signal Light Lamp AD16-22DS
Type: ad16-22ds
AD16 series use pure color high brightness LED light emitting chip as light source, long service life, low energy consumption, small volume, light weight, head in a variety of styles, high brightness, good reliability, beautiful shape and sophisticated manufacture, it is suitable to be used in electricity, telecommunications, machine tools, ships, textile, printing, mining machinery and other equipment line indication signal, notice signal, accident signal and other indication signal.
Specifications
1.Model Number:AD16-22D/S signal light
2.Power Frequency withstand Voltage:2.5kv/1 min (effective AC value)
3.Insulation resistance:?2M?
4.Allowable voltage fluctuation:±20%
5.Continuous Operationg Life:?30000h
6.Brightness:?100cd/m2
7.CTI?100
8.Protection degree of the head IP65,IP67 is avaliable on request.
9.Applying Frequency:AC50-60HZ
10. Optional voltage:12V 24V 220V 380V (customized 230V 110V)
11.Dimension: 50mm*28mm
PakcageContent : 1 x LED Indicator Light
