Leírás
Function:
The filter bandwidth is 300MHz, 2.4GHz receiver for performance optimization, etc.,
Features:
It can effectively filter out out-of-band signals, reduce noise, and increase dynamic range.
Specification:

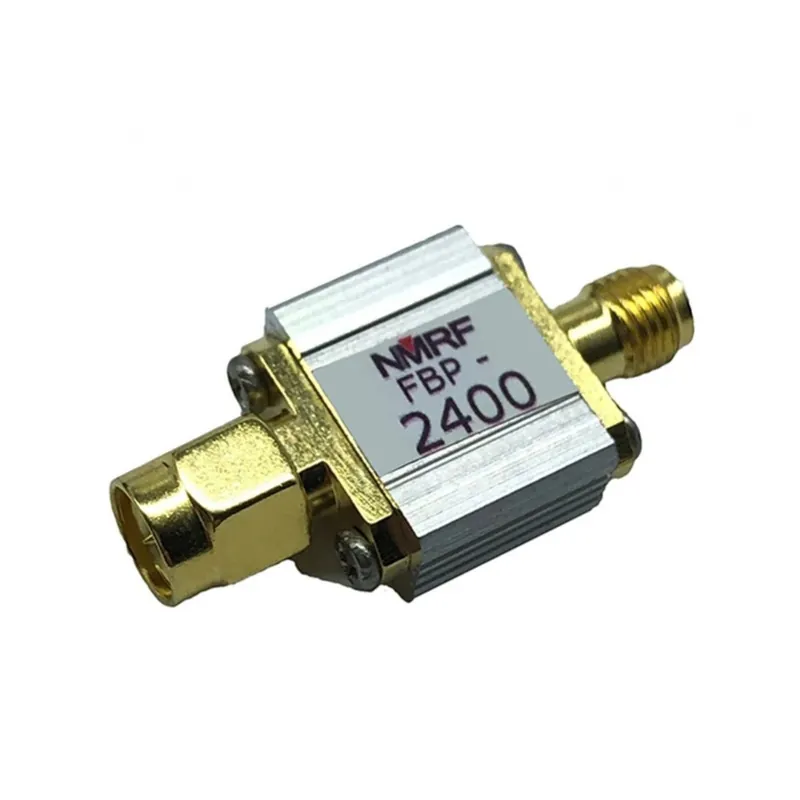

Model: FBP-2400
Impedance: 50 Ohm
Center Frequency: 2450MHz
Pass band: 2300~2600MHz
Insertion Loss: <2dB@2400~2500MHz
Maximum load power: 300mW (25dBm)
Interface: SMA-M, SMA-F
Package Included?
Bandpass filter*1
Specifications
Origin
Mainland China
