Leírás
Intelligens autós robot E18-D80NK infravörös akadály elkerülő fotoelektromos érzékelő közelségkapcsoló 3-80 cm érzékelési tartomány állítható

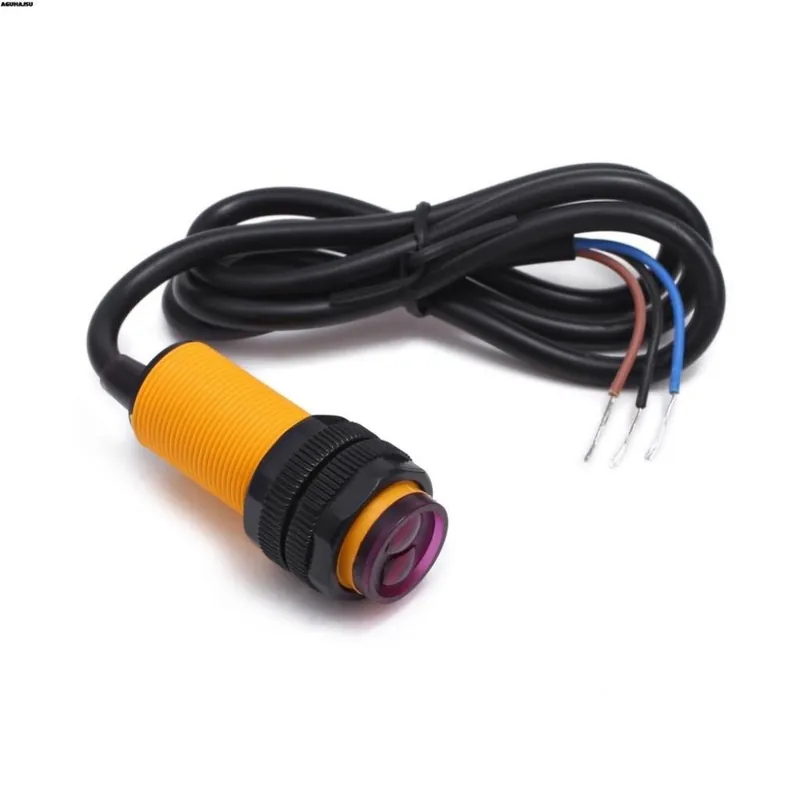

Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable
This is a photoelectric sensor that integrates transmission and reception. The detection distance can be adjusted as required. The sensor has the characteristics of long detection distance, low interference by visible light, low price, easy assembly and convenient use, and can be widely applied to many automation products such as robot obstacle avoidance and pipeline metering.
Electrical characteristics:
U: 5VDC
I: 100mA
Sn: 3-80CM
size:
Diameter: 17MM
Sensor length: 45MM
Lead length: 45CM
Applications:
1. Automatic counting equipment for production lines
2, multi-function reminder
3, go the labyrinth robot
4, kitchen automation system
5, security anti-theft system, etc.
Photoelectric sensor (photoelectric switch) NPN normally open
Model: E18-D80NK.
Technical parameters of photoelectric switch E18:
1. Output current DC/SCR/relay Control output: 100mA/5V power supply
2. Current consumption DC<25mA
3, response time <2ms
4, pointing angle: ≤ 15 °, effective distance 3-80CM adjustable
5, detecting objects: transparent or opaque
6, working environment temperature: -25 ° C ~ 55 ° C
7, standard detection object: sunlight below 10000LX incandescent lamp below 3000LX
8, shell material: plastic
