Leírás
Data List SC56-11EWA

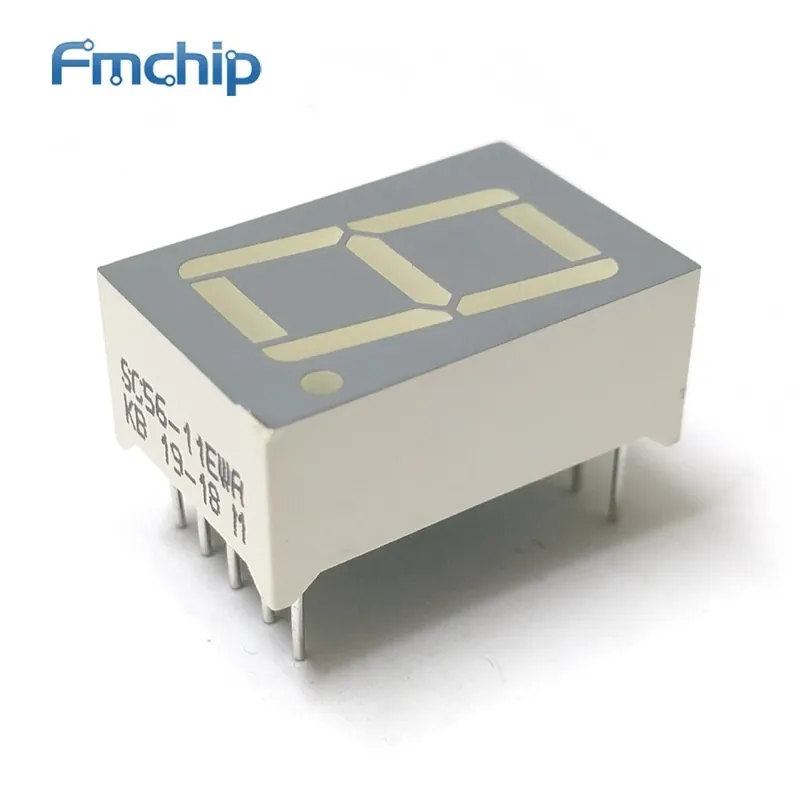

Product Photos SC56-11EWA
Catalog Drawings SC56 Series Side 1
SC56 Series Side 2
SC56 Series Top
3D Model Sx56-11x.sldprt
Sx56-11x.pro
Sx56-11x.igs
Sx56-11x.stp
Standard Package 40
Category Optoelectronics
Family Display Modules – LED Character and Numeric
series –
Number of characters 1
Size / Dimensions 0.750 \\”high x 0.500\\”” wide x 0.315 \\”” diameter (19.05mm x 12.70mm x 8.00mm)
Digital / letter size 0.56 \\””(14.22mm)
Display Type 7-segment display
Universal pin Common Cathode
Colour Red
Voltage – Forward (Vf) ( typical) 2V
Current – Test 20mA
Cents candlelight rating 6.4mcd
Wavelength – 627nm
Power dissipation (max ) 75mW
Package / Case 10-DIP (0.600 \\””, 15.24mm)
Catalog Page 2892 (CN2011-ZH PDF)
Other Names 754-1465-5
SC5611EWA
„
