5V 1 csatornás OMRON SSR magas szintű félvezető relé modul 250V 2A Arduinohoz

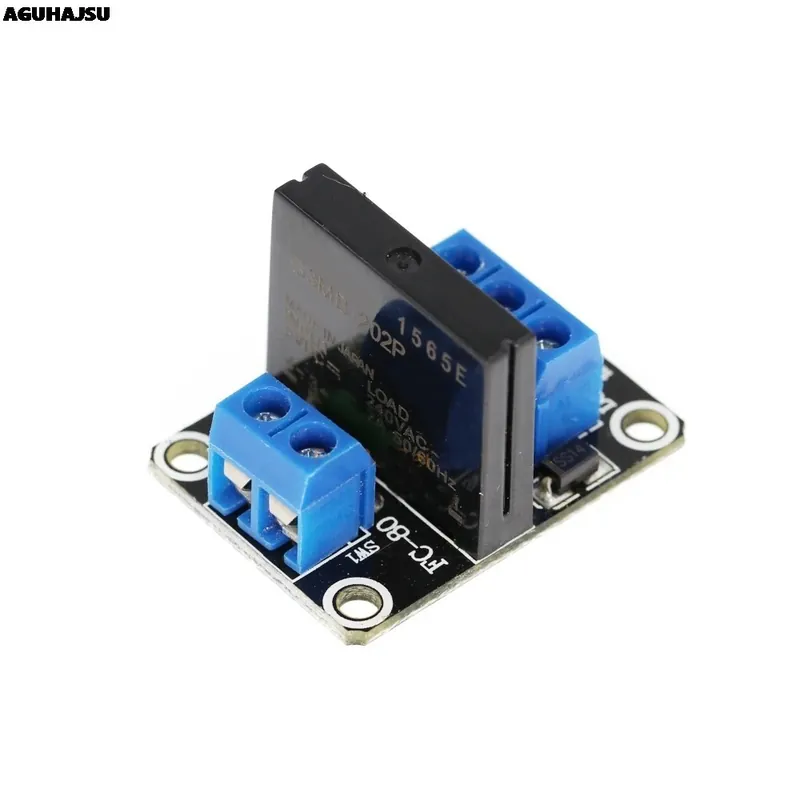

5V 1 Channel OMRON SSR High Level Solid State Relay Module 250V 2A For Arduino
Features:
Size: 25 * 34 * 25 (L * W * H) Weight: 13g
Input Power: 5V DC (160MA)
Input control signal voltage:
(0-1.5V state low relay ON)
(2.5-5V state high relay OFF)
Voltage Current: 12.5mA
Trigger Voltage: 0-1.5V
Trigger Current: 2mA
Voltage: 5V
Quiescent Current: 0mA
Module interface:
Input section:
DC : Positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay module signal to trigger the end (low to trigger effective)
NOTE: Power must be DC Voltage, voltage must be consistent with the relay voltage
