Leírás
Specifications
Rated Voltage: AC250V 50?60Hz
Rated Current: 5A of Resistive Load
Switch Type and Number of poles: 1 pole opener
IP-Protection Degree: IP00
Action Type: 1A
Operation Cycles: 10000 cycle
Insulation material PTI value:175V
Resistance of Contact:?50m?(original state)
Resistance of Insulated:>100M?(DC500V normality)
Test Voltage : ? 1250V/1min(nomality)

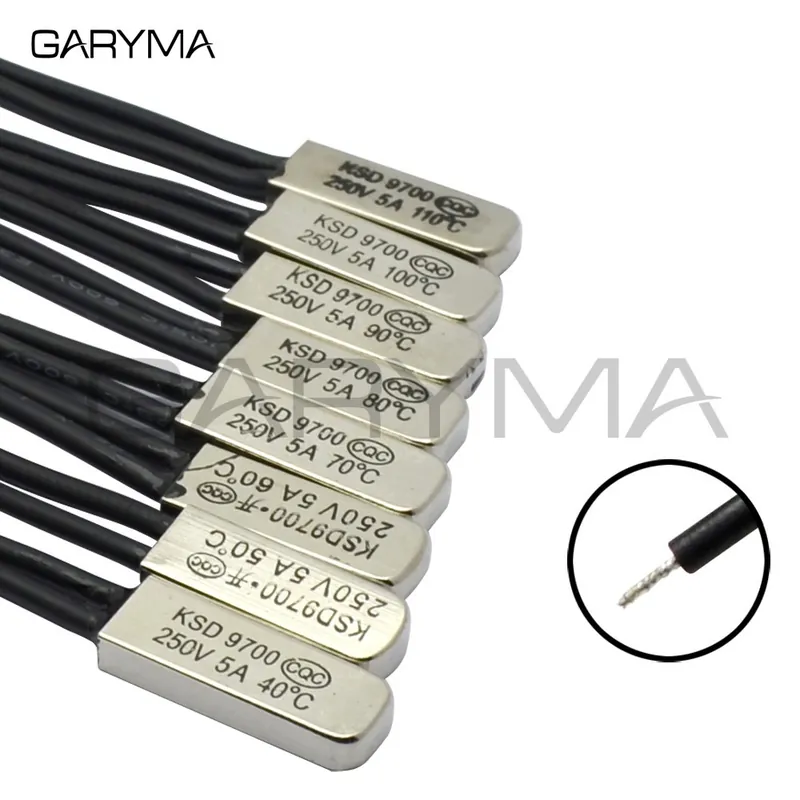

1 or 2 Temperature Control Switch
Model : KSD9700
Material : Metal case
Contact : NC(Normal Closed)/NO(Normal Open)
Temperature : 15°C~155°C
Rated Power : 250V 5A
Lead Wire Length : 7.3cm / 2.9″
Head Dimension : 20 x 7.5 x 3.5mm/0.78″ x 0.3″ x 0.14″(L*W*T)
Product applicationBe applicable to all kinds of home appliances and electronics products. Such as Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating pads, OA-Machines ETC.
The metals outer shell type the product outer shell take an electricity,should add to insulate a coat.
