NDIR CO2 ÉRZÉKELŐ MH-Z14A infravörös szén-dioxid érzékelő modul, soros port, PWM, analóg kimenet MH-Z14 kábellel

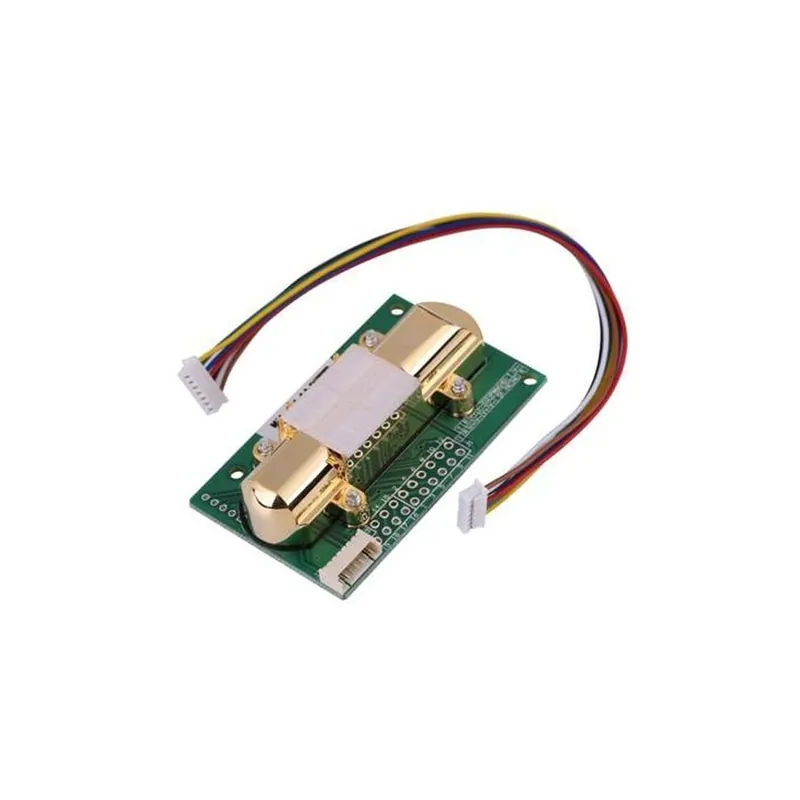

NDIR CO2 SENSOR MH-Z14A infrared carbon dioxide sensor module,serial port, PWM, analog output with cable MH-Z14
CO2 SENSOR MH-Z14A 1piece with cable 1piece
Product Name: MH-Z14A infrared type, carbon dioxide detection sensor
1, the working voltage: DC4.5-5.5V
2, Working current: Mean <60mA; peak 150mA.
3, the detection range: 0-5000ppm
4, the detection accuracy: ± (50ppm 3% reading value)
5. Warm-up time: 3min
6, the output signal:
1) analog output voltage: (D1 port 0V-2.5V) (D2 port 0.4-2V) linear output.
2) serial port (UART) (TTL level)
3) PWM
7, response time: T90 <120s
8, the working temperature: 0 ~ 50 oC
9, Humidity: 0 ~ 95% RH
10, life: 5 years
11, size: 57mm × 35mm × 15mm
12, weight size: 17g
Package Including:
1pcs x CO2 sensors
