1db/tétel DC CC 9A 300W Step Down Buck Converter 5-40V 1.2-35V Tápmodul
1pcs/lot DC CC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Power module
Features:
100% brand new and high quality
Use a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current
High output current, the max output current can reach 9A.
Low output ripple , high frequency capacitor reduces output ripple.
Suitable for LED driver.
Specification:
Material: PCB board and electronic component
Color: as the pic shows
Input voltage: 5-40V
Output voltage: 1.2-35V (continuously adjustable)
Output Current: 9A (power tube temperature exceeds 65°C please add cooling fan)
Constant current range:0.2-9A ( adjustable )
Output Power: Maximum power is about 300W (power tube temperature exceeds 65°C please add cooling fan)

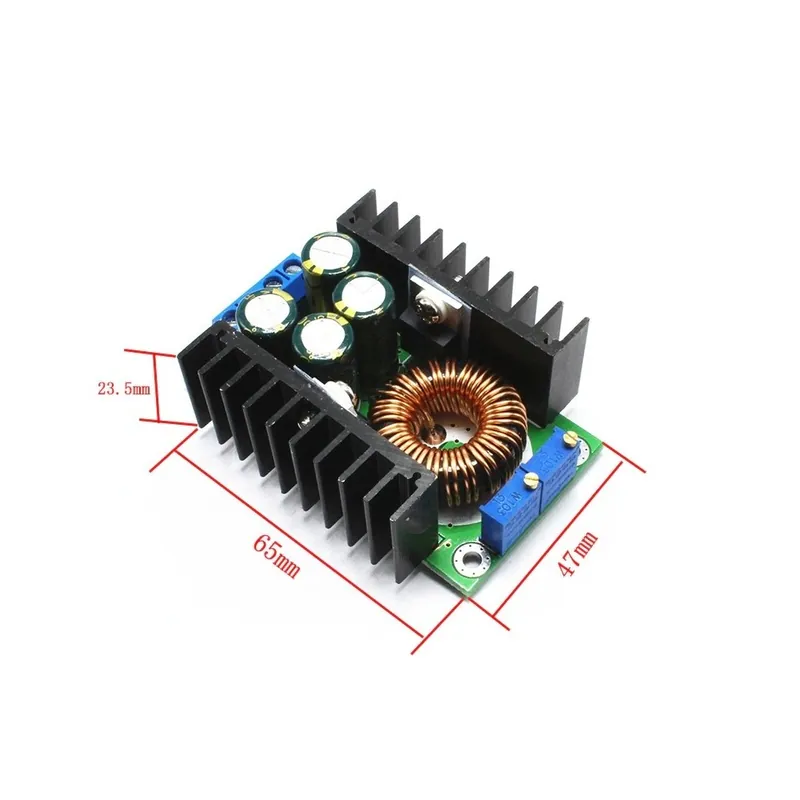

Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)
Package included:
1 x DC CC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Power module
