Leírás
5 db 1/8″-os PT apa menet 10 mm-es csőbe nyomható csatlakozáshoz pneumatikus csatlakozó gyorscsatlakozók PC10-01

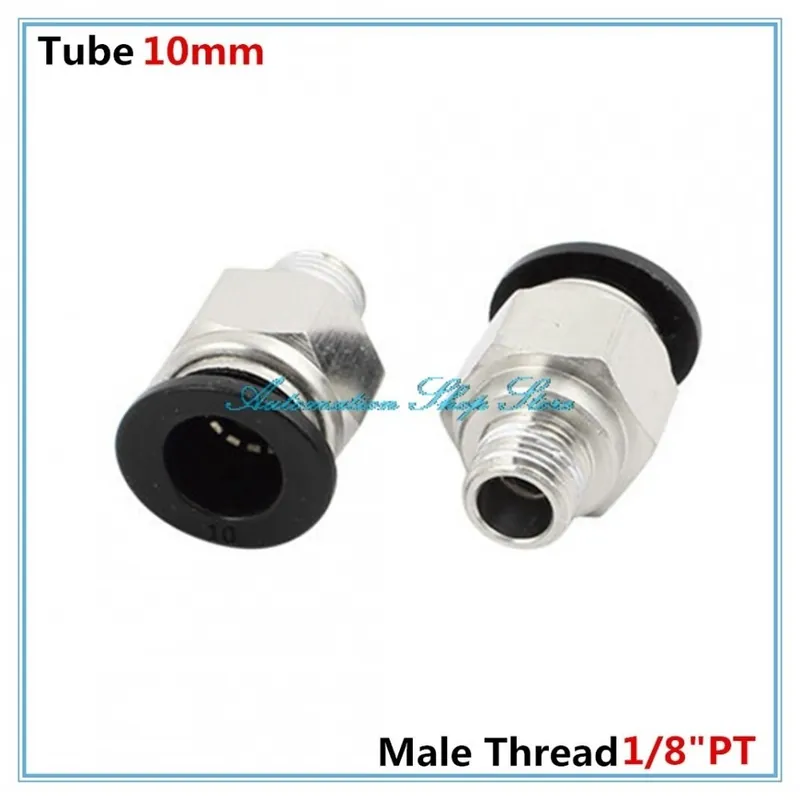

5Pcs 1/8″ PT Male Thread to 10mm Tube Push In Joint Pneumatic Connector Quick Fittings PC10-01
Specification:
Model: PC12-01
Male Thread Size: 1/8″PT/9.5mm
Fit For Tube Outer Diameter: 10mm
Fluid Type: Air / Vacuum
Operating Presure 0~10. 2kgf/cm2 (0~1.0Mpa)
Negative Pressure: -750mmhg (10 Torr)
Operating Temperature Range: 0~60C
Fit For Tube Material: PU / Nylon ,Polyurethane
Quick Fitting Material: Brass & Plastic
Package Content: 5 Pcs Quick Fittings
MODEL Tube (OD) Male Thread Size (Approximately MM)
PC4-M5 (PC5/32) 4 PTM5 5mm
PC4-01 (PC5/32) 4 PT1/8 9.7mm
PC4-02 (PC5/32) 4 PT1/4 12mm
PC4-03 (PC5/32) 4 PT3/8 16mm
PC6-M5 (PC1/4) 6 PTM5 5mm
PC6-01 (PC1/4) 6 PT1/8 9.7mm
PC6-02 (PC1/4) 6 PT1/4 12mm
PC6-03 (PC1/4) 6 PT3/8 16mm
PC6-04 (PC1/4) 6 PT1/2 20mm
PC8-01 (PC5/16) 8 PT1/8 9.7mm
PC8-02 (PC5/16) 8 PT1/4 12mm
PC8-03 (PC5/16) 8 PT3/8 16mm
PC8-04 (PC5/16) 8 PT1/2 20mm
PC10-01 (PC3/8) 10 PT1/8 9.7mm
PC10-02 (PC3/8) 10 PT1/4 12mm
PC10-03 (PC3/8) 10 PT3/8 16mm
PC10-04 (PC3/8) 10 PT1/2 20mm
PC12-01 (PC1/2) 12 PT1/8 9.7mm
PC12-02 (PC1/2) 12 PT1/4 12mm
PC12-03 (PC1/2) 12 PT3/8 16mm
PC12-04 (PC1/2) 12 PT1/2 20mm
