Model name: micro switch 6 * 6
Performance parameters:
Main technical specifications of touch switch series
?Specification of TACT switch Series?
Temperature range: – 25 ° ~ – 85 ° C
Rated load: DC12V 0.1A
Contact resistance: < = 0.03 ?
Withstand voltage: ac250 V (50 Hz) / min
Action force: 1.3 + – 0.5N
Insulation resistance: > = 100m ?
Life: 100000 times
Refer to dimension drawing:

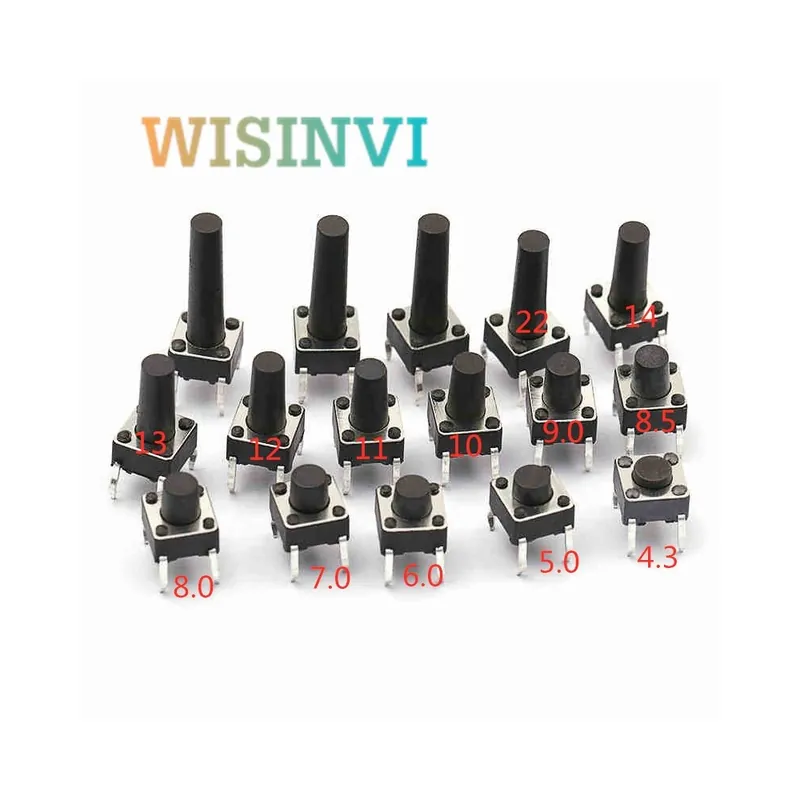

Note: in the figure below, h is the height in mm.
For example, 6 * 6 * 7, that is, the height is 7mm (mm)
