This product is a compact low-pass filter with a passband (< 1000MHz) insertion loss of less than 1dB. Yangshao's excellent production and production process, the insertion frequency of the filter frequency can reach more than 40dB at 3 GHz, the frequency high-end has no abnormal fluctuations, and the performance index is much better than other products using PCB bare board processing. Dedicated to the 915 MHz medium and small power RFID transceiver system to strongly suppress secondary, tertiary harmonic, and clutter frequency signals. We can also design and customize filters of other frequencies according to customer requirements.

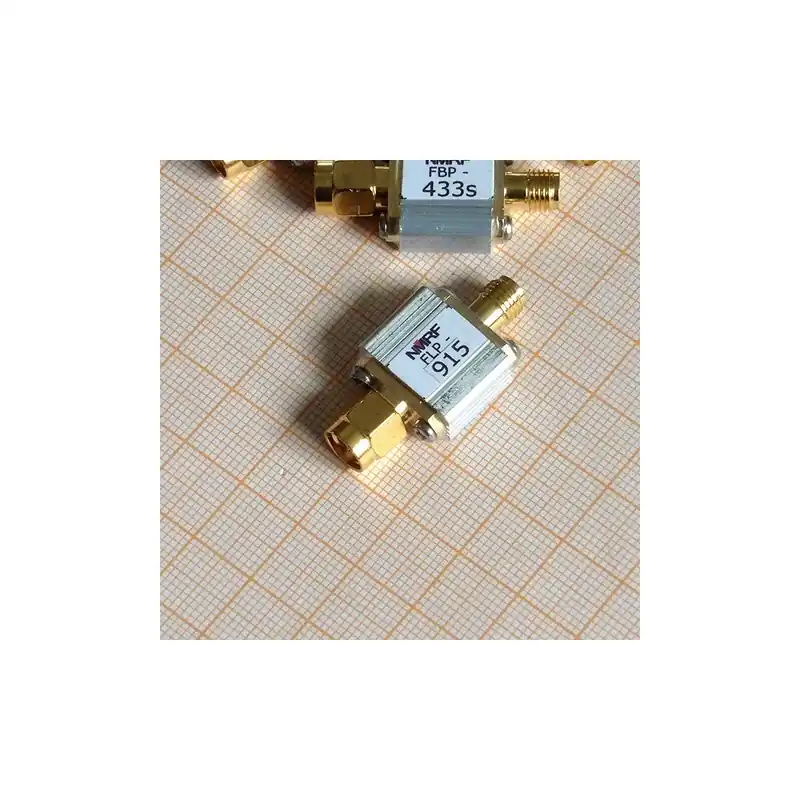

Model: FLP-915
Impedance: 50 Ohms
Insertion loss: < 1 dB @ < 1000 MHz
~ 50 dB @ 1830 MHz ( 915 x 2)
> 40 dB @ 2745 MHz ( 915 x 3)
Maximum load power: 5 W (37 dBm)
Frequency response diagram:
Circuit mode diagram:
Interface: SMA-M, SMA-F
Dimensions:
Circuit mode diagram:
Interface: SMA-M, SMA-F
Dimensions:
