Leírás
3S 20A 18650 Li-ion Lithium Akkumulátortöltő Védőtábla 10,8V 11,1V 12V 12,6V Elektromos 15A Lipo BMS PCB PCM mérleggel

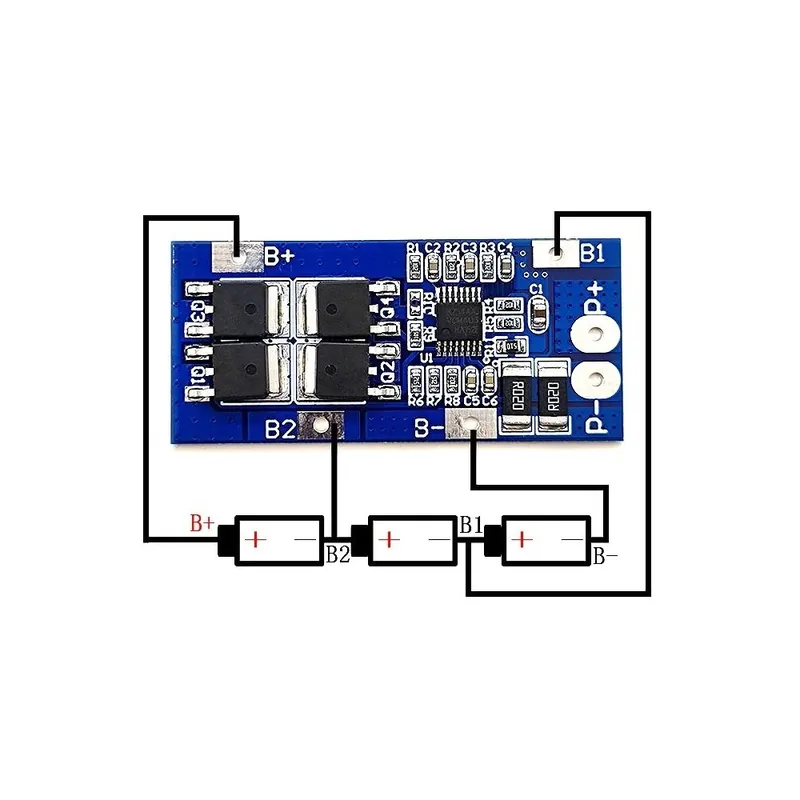

3S 20A 18650 Li-ion Lithium Battery Charger Protection Board 10.8V 11.1V 12V 12.6V Electric 15A Lipo BMS PCB PCM with balance
model :HX-3S-D01 size :51*23*4mm
Upper operating current :15A
Upper transient current :20A
Overcharge range :4.25V0.05V
Over voltage range :2 .75V 0.05V
The static current :Less than30uA
Charging voltage :12 .6V-13V
Short circuit protection :Protected ,
delayed self-recovery .
