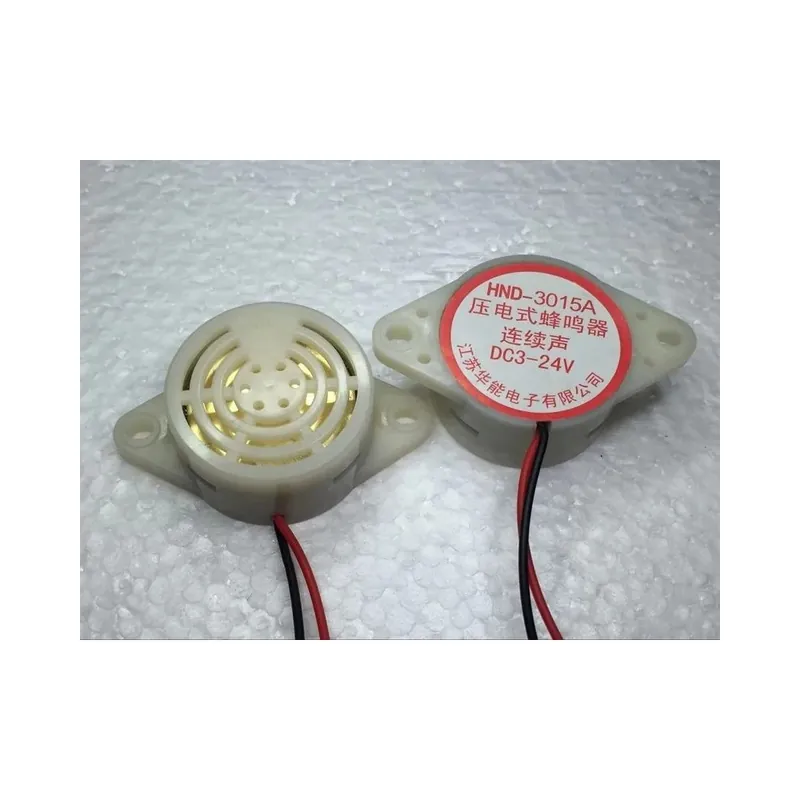

HND-3015A
FREQUENCY RESPONSE
SPECIFICATIONS
Type Unit HND-3015A
Rated Voltage(Square Wave) V 6 12 24
Operating Voltage V 4-8 8-15 3-28
*Rated Current(MAX) mA 20 15 20
*Min Sound Output at 10 cm dB 85 88 90
*Resonant Frequency Hz 3400±500 3300±500 3100±500
Operating Temperature ? -20?+80
Weight g 8
SPECIFICATIONS
Type
Unit
HND-3015A
Rated VoltaGe (Square Wave)
V
6
12
24
OperatinG VoltaGe
V
4-8
8-15
3-28
*Rated Current (MAX)
MA
20
15
20
*Min Sound Output at 10 cm
DB
85
88
90
*Resonant Frequency
Hz
3400 + 500
3300 + 500
3100 + 500
OperatinG Temperature
CentiGrade
-20 ~ +80
WeiGht
G
8
HND-3015A
FREQUENCY RESPONSE
SPECIFICATIONS
Type Unit HND-3015A
Rated Voltage(Square Wave) V 6 12 24
Operating Voltage V 4-8 8-15 3-28
*Rated Current(MAX) mA 20 15 20
*Min Sound Output at 10 cm dB 85 88 90
*Resonant Frequency Hz 3400±500 3300±500 3100±500
Operating Temperature ? -20?+80
Weight g 8
