Leírás

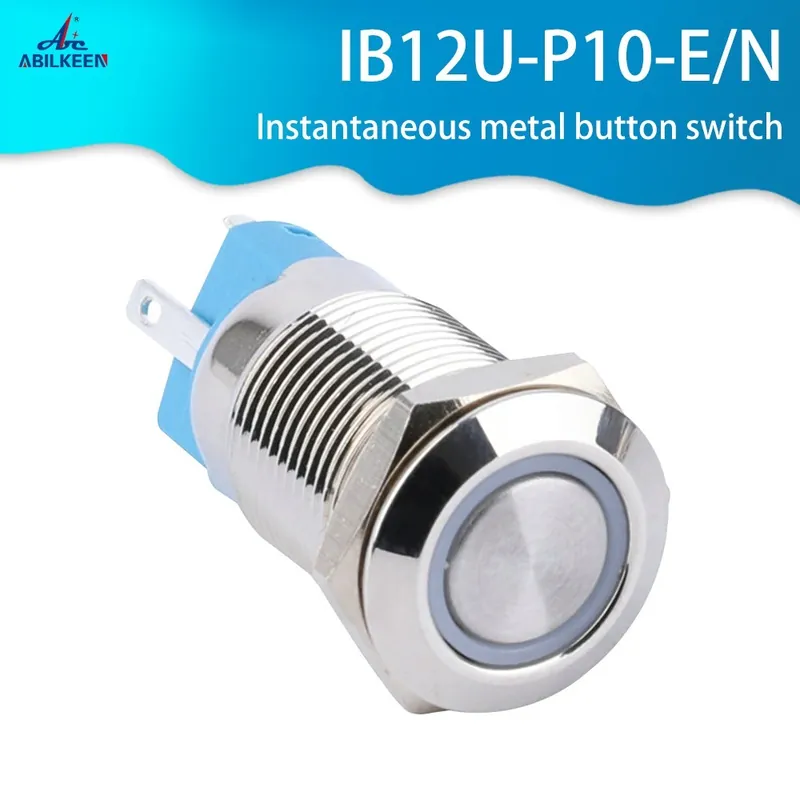

Flat Round 4Pin Momentary 3V 5V 12V 24V 110V 220V Red Blue White Yellow Green Led Lighted 12mm Metal Push Button Switch
Product description
· Item Name : Push Button Switch
· Mounting Thread Diameter : 12mm
· Enclosure Material : Nickel plate brass
· Switch Description: Momentary Switch (Press ON, Release OFF)
· Shape:FlatRound
· Rated Value: 2A / 36VDC
· Terminal Type:PINTerminal
· Contact Configuration: 1NO (Normally Open)
· Protection Degree: IP65 (Waterproof), IK08 (Anti-Collision)
· Waterproof Protection Can be Used in Wet or Dusty Environment
· Fits: This Switch Can Be Used For Circuit Control In Electromagnetic Starter, Contactor, Relay and Other Electric Circuits. Also Use in Assembly Work-shop, Public and Entertainment Locations, Electrical Control Panels
· Easy to Install, Can be Used in Various Additional Electric Equipment, Reply, Inside or Outside the Car or Any Circuit Controls.
Product Name
Push Button Switch
Model
IB12C-P10F-E/N
Mounting Hole
12mm
Operation Type
Momentary (Reset)
Switch Combination
1NO
Head Type
Flat round head
Terminal type
4 Pin Terminals
Illuminated or not
Yes
Led Voltage
12V (or 3V/5V/12V/24V/110V/220V/others)
Led Color
Blue (OrRed,green,yellow,orange,white)
Illuminated Type
Ring Led illuminated
Enclosure Material
Brass nickel
Delivery Days
1-7 days
Contact Resistance
50 m? max
Insulation Resistance
1000M? Min
Dielectric Intensity
2000VAC
Operating Temperature
-20°C ~+55°C
Customized symbol,colored housing
Accessories
Nut, Rubber O-ring
What You Get
1X Push button switch:
12mm, 12V Blue LED, Momentary
