Specification :
Note: the connector needs to be purchased separately
Difference between auto-recovery button and auto-lock button:
1. Self-recovery button: press this button to turn on the power (light on),
Release your hand, the power will appear and turn off automatically (the light goes out)
2. Self-locking button: press the power button, release your hand, and keep the button stationary ,
Press the button again to display and turn off the power (the light goes out).
Product parameters
Head type: round head
Housing material: metal
Operation type: Momentary self-reset/fixed self-locking
Emitting color: red / yellow / blue / green / white

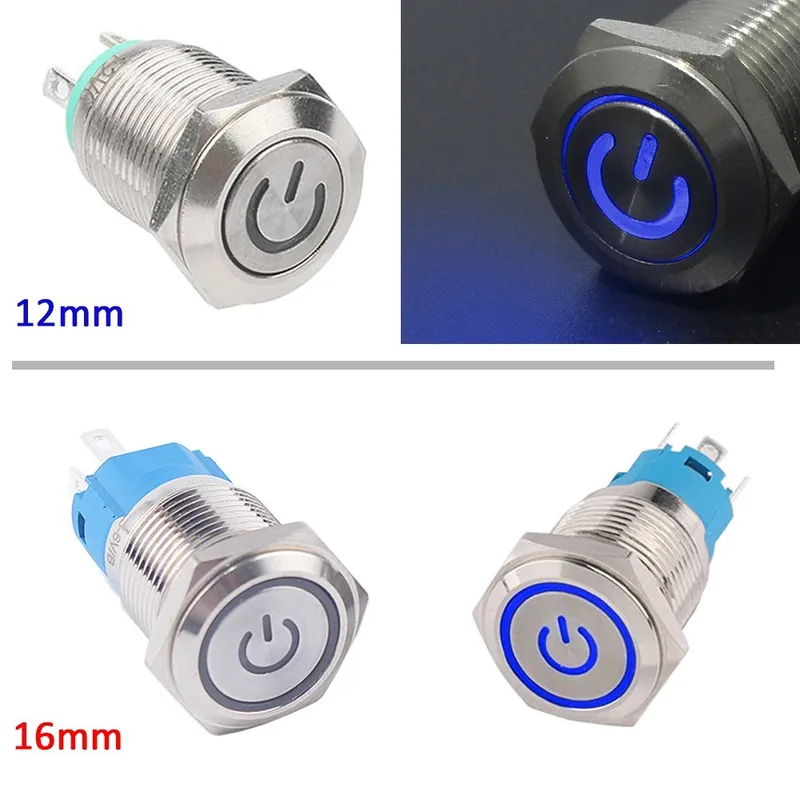

Opening size: 12mm/16mm
1.What does the signal „NC” and „NO” means?
„A” „+”: positive pole of the led
„LED” ” – „: negative pole of the led
” NC „: Normal Close
” NO „: Normal Open
” C ” : Common
2.How to connect?
1.Connect ” NO ” and ” C ” : The circuit is alway open unless press the button.
2.Connect ” NC ” and ” C ” : The circuit is alway close unless press the button.
