Leírás

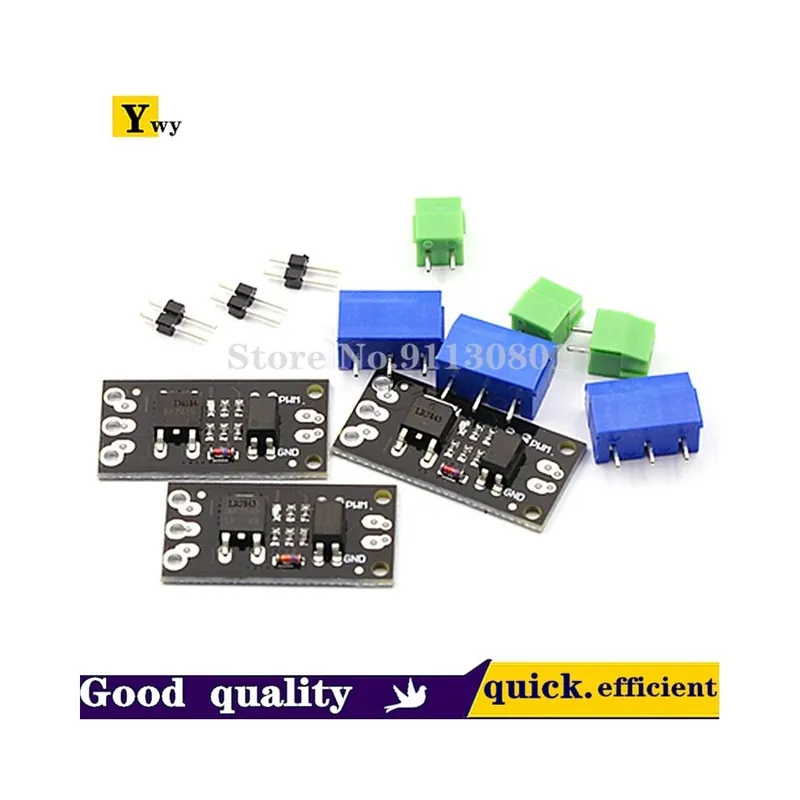

Module Features:
1. With optocoupler isolation, the control signal is isolated from the power supply of the controlled equipment, which greatly improves the rigid interference.
2. Compatible with microcontroller and Arduino light control board, 3V or 5V signal
3. High level start, low level stop, PWM speed regulation
4. Widely used to control the start and stop of motors, solenoid valves and other tributary equipment
5. There are various specifications of MOS tubes to choose from,
For example
FR120N : 100V 9.4A
LR7843: 30V 161A
AOD4184: 40V 50A
6. The signal input side can solder terminals or pins by itself, compatible with breadboards
7. The output can be soldered terminals or directly soldered wires
8. The module size is 23mm X 16mm, there are two 2mm diameter screw holes, and the hole spacing is 8mm
