This product is a compact high-pass filter for 915 MHz RFID receiver systems to withstand ISM signal interference. The passband (>= 915MHz) insertion loss is less than 2.5 dB, the stop-band (< 500MHz) insertion loss is greater than 40dB, and the performance index is much better than other products using PCB bare board processing. We can also design and customize filters of other frequencies according to customer requirements.

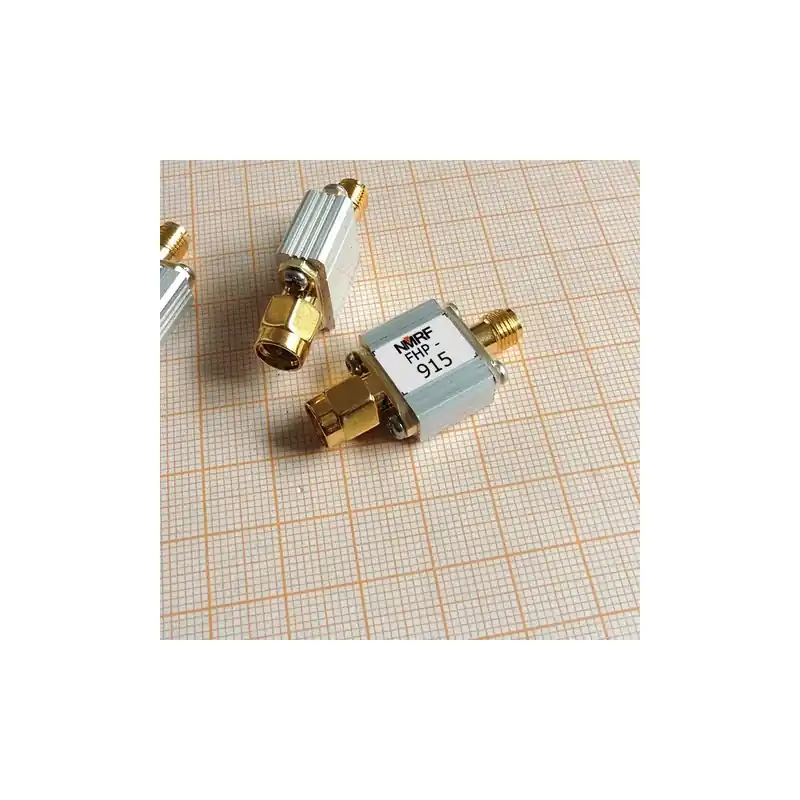

Model: FHP-915
Impedance: 50 OHms
Passband insertion loss: < 1.5 dB @ 915 ? 2000 MHz
< 5 dB @ 2000 to 3800 MHz
Stopper insertion loss: > 40 dB @ DC ~ 500 MHz
Maximum load power: 2 W (33 dBm)
Interface: SMA-M, SMA-F
Frequency response diagram:
Dimensions:
Circuit mode diagram:
Dimensions:
Circuit mode diagram:
