This product is suitable for GPS L1, Beidou B1, GLONASS L1 band, and is constructed by surface acoustic wave SAW device with precise bandwidth and excellent cut-off characteristics. The internal low-impedance DC path supports the use of active antennas and is a complete replacement for the HP58514 series. Dedicated to inter-frequency interference for GPS satellite positioning systems. It is also possible to select filters corresponding to other satellite positioning systems (Beidou B2, GPS L2, etc.)

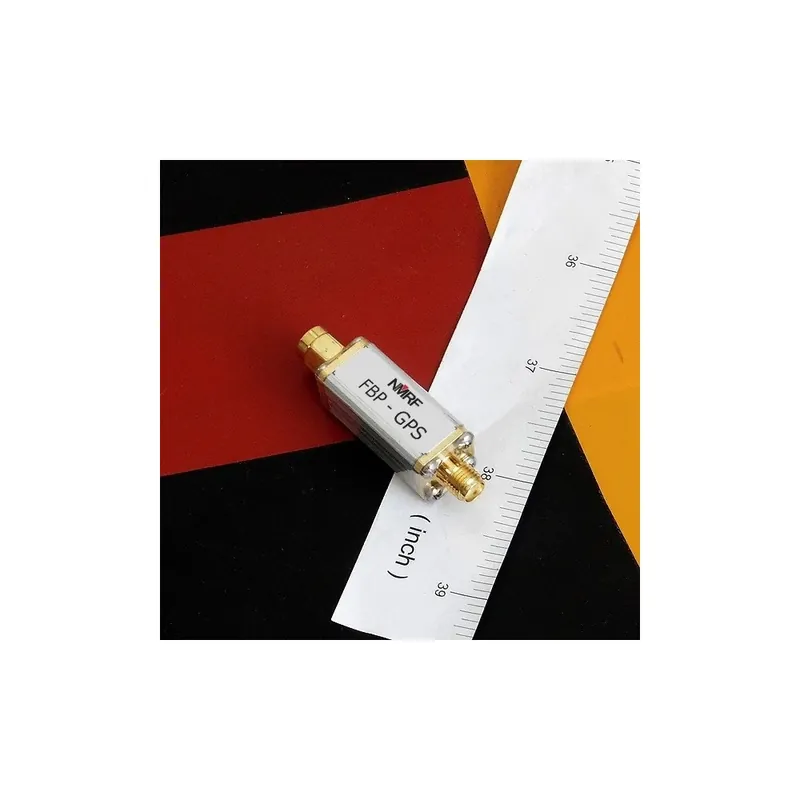

Model: FBP-GPS
Impedance: 50 Ohms
Maximum load power: 100 mW (20 dBm)
Maximum DC current: 500 mA
Interface: SMA-M, SMA-F
Center frequency / 1 dB bandwidth: 1585 MHz / 60 MHz
3 dB passband: 1540 to 1630 MHz
Passband interpolation loss: <= 5 dB
Frequency response diagram:
