Leírás

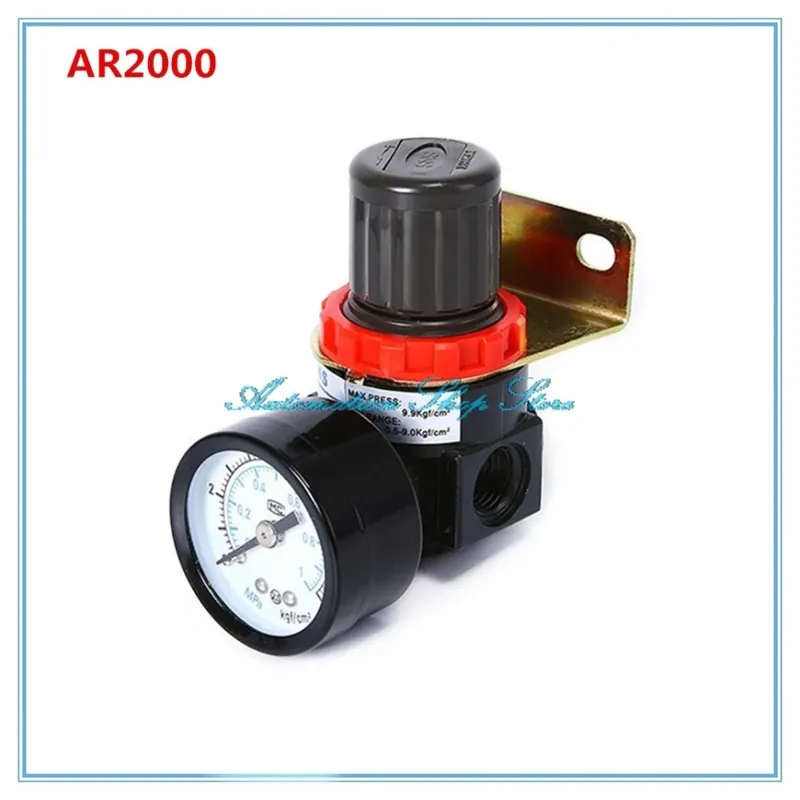

AR2000 Model 1/4″ PT rögzíthető, állítható nyomású pneumatikus szabályozó
AR2000 Model 1/4″PT Mounting Adjustable Pressure Pneumatic Regulator
Specification:
Product Name : neumatic Regulator
Model : AR2000
Working Medium:Air
Max. Pressure : .9Kgf/cm2
Adjustable Pressure Range: 0.5-0.9Kgf/cm2
Joint Pipe Bore Diameter: 13mm
Joint Pipe Bore Size: 1/4″PT
Pressure Gauge Connector Dia: 10mm/ 0.39″
Pressure Gauge Range: 0-10 Kgf/cm2, 0-1 MPa
Total Size: 8.5 x 7.5 x 5 cm/ 3.4″ x 3″ x 2″ (L*H*W)
Pressure Gauge Size: 4.1 x 2.5cm/ 1.6″ x 0.98″ (D*T)
Bracket Mount Hole Size: 8.4 x 6.5mm/ 0.33″ x 0.25″(L*W)
Package Content:
1 x Pneumatic Regulator
1 x Pressure Gauge
1 x Install Bracket
