Leírás
TEC4056 18650 töltő modul 4,2 V lítium akkumulátor töltő 18650 lítium akkumulátor töltőhöz, nem védőkártya modul

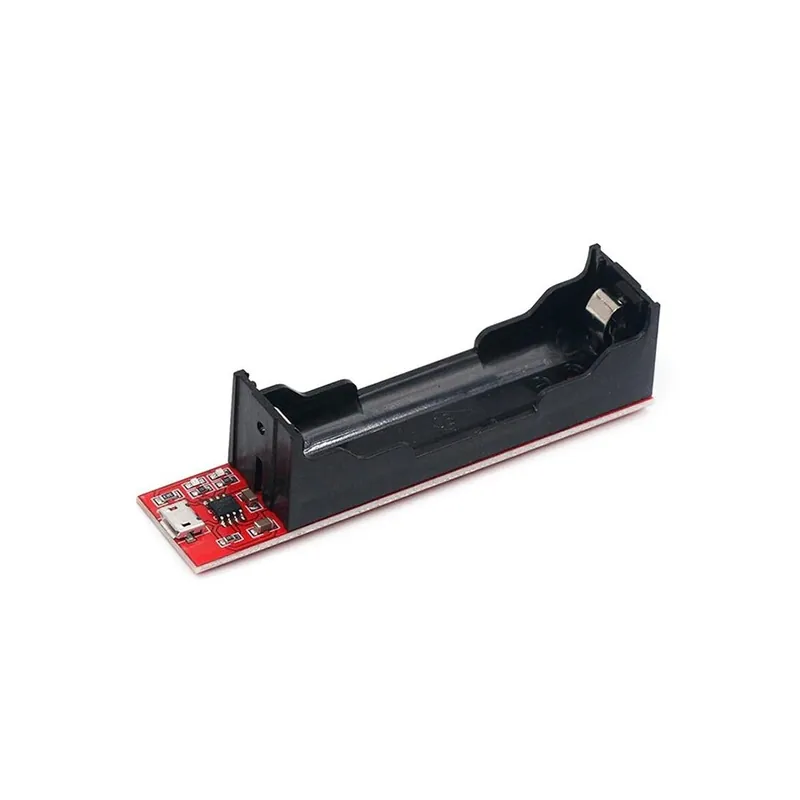

TEC4056 18650 Charger Module 4.2V Lithium Battery Charger for 18650 Lithium Battery Charger non-protection Board Module
1.Description:
1>. 0.3A, 0.5A, 0.8A current charging
2>. Adopt micro USB interface, convenient to use
3>. Charging status LED indicator lamp: red lamp charging; green lamp fully charged
4>. Suitable for 18650 lithium non-protection board
5>. Working temperature:-25~85℃
2.Features:
Three charging current (0.3A, 0.5A, 0.8A) can be set via external resistor; two resistors (0.3A, 0.5A) is current setting resistor; factory set defaults 0.8A, users can remove the resistor to change the current. For example, after removing 0.3A resistor and keeping 0.5A resistor, then the charging current is 0.5A
