5A DC-DC CC CV lítium akkumulátor lefelé tartó töltőtábla LED tápátalakító lítium töltő leléptető modul XL4015

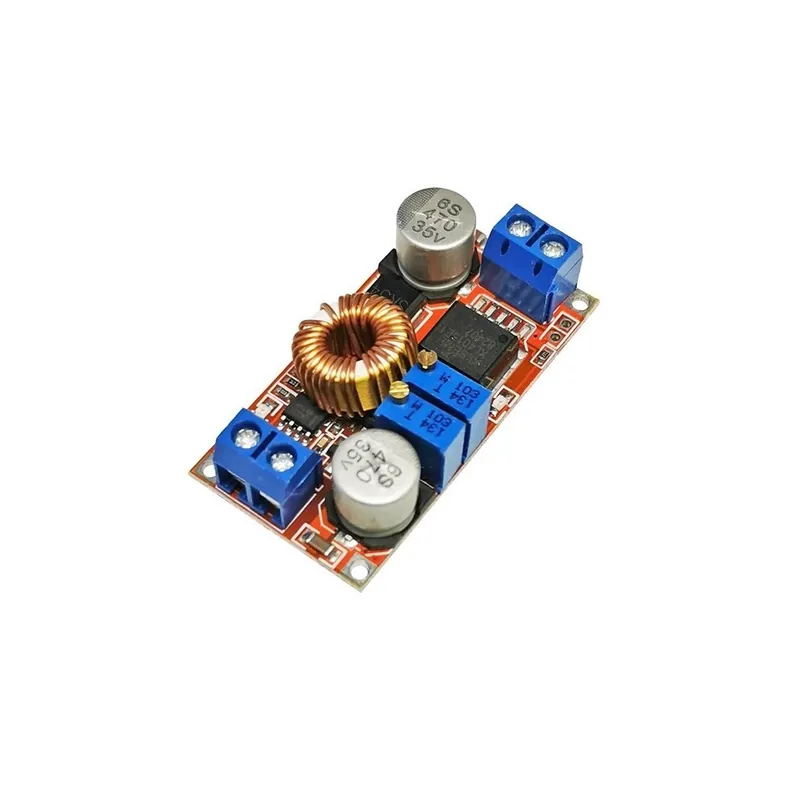

5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015
Size: 5.2 x 2.65 x 1.4cm (L x W x H)
Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 8V-36V
Output voltage: 1.25V-32V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 180KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Operating Temperature: -40 °c to 85 °c
