Leírás

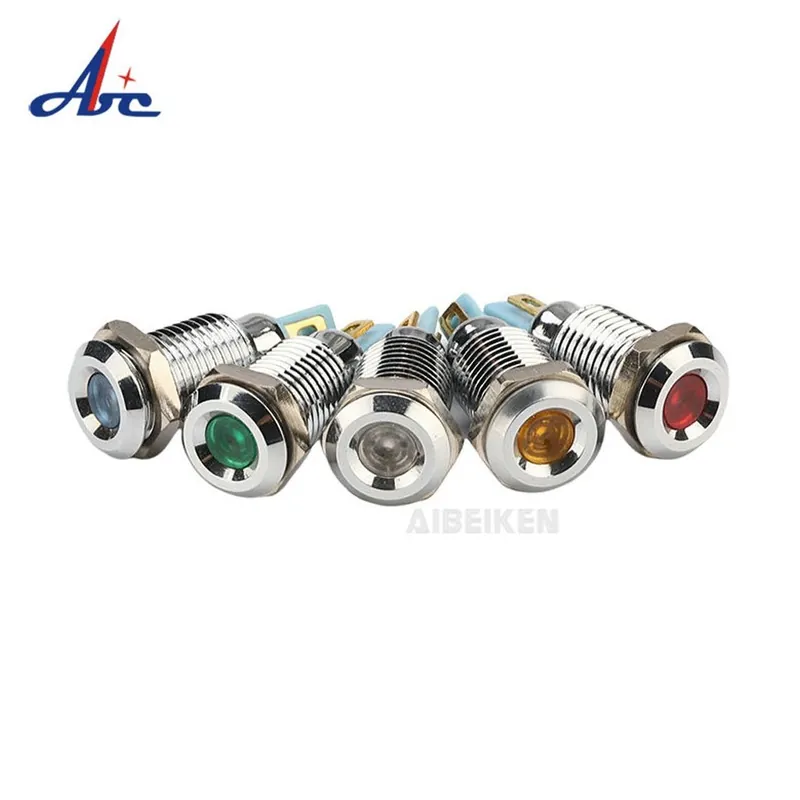

12V 24V 110V 220V 10mm Waterproof 10mm LED Metal Indicator light with wire red yellow blue green white Signal Lamp
Name : 10mm Signal Lamp
Description:100% brand new and high qualityFor widely use at car, truck, boat and so on.Easy to use and installSafe, durable,and practical
Mounting hole: 10mm
wire length: approx. 150mmWorking voltage: 12V DC(red is positive and black is negative)Package included: 1x 10mm indicator lamp
Note:1.Please allow a little size error due to manual measurement.2.Please be reminded that due to lighting effects and monitor’s brightness/contrast settings etc, the color tone of the website’s photo and the actual item could be slightly different.
Product Name
Pilot Lamp/Indicator Light/Signal Lamp
Model
IB10B-CY-D/N
Mounting Hole
10mm
Actuator Shape
Concave Head
Terminal type
2 Pins terminal
Illuminated type
Dot Led
Led Voltage
12V (or 3V/5V/24V/110V/220V/others)
Led Color
Blue
(Red, Green, Yellow,White,Orange available)
IP degree
IP67, IK10
Enclosure Material
Brass nickel
Operating Temperature
-20°C ~+55°C
Accessories
Nut, Rubber Waterproof O-ring
Customized Order Confirm
1. What Led Color? 2. What Led Voltage?
What You Get
1X 10mm indicator light
Q: What is Momentary function for Push button switch?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q: What is Latching function for Push button switch?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
