Leírás
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
Li-ion Lithium Battery BMS 3S 12.6V 4S 16.8V 5S 21V 25A PCM Polymer Lipo Battery Cell Pack Protection Circuit PCM Charging Board
100% Brand new and high quality 18650 lithium battery charging Module
FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Single Cell overcharge protect voltage: 4.23 – 4.28V
Single Cell overcharge rotect recover voltage: 4.08 – 4.18
overcharge protect delay: 0.5 – 1.5S
Single Cell over-discharge protect voltage: 2.72 – 2.88V
Single Cell over-discharge rotect recover voltage: 2.9 – 3.1V
overcharge protect current: 60A
over-discharge protect current: 60A
over-discharge protectdelay: 0.5 – 1.5S
temperature protect: YES
disconnect protect: YES
shortage protect: YES
shortage delay: 100 – 600μS
shortage protect recover: YES
Charging current: 25A
discharging current: 25A
charging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS board

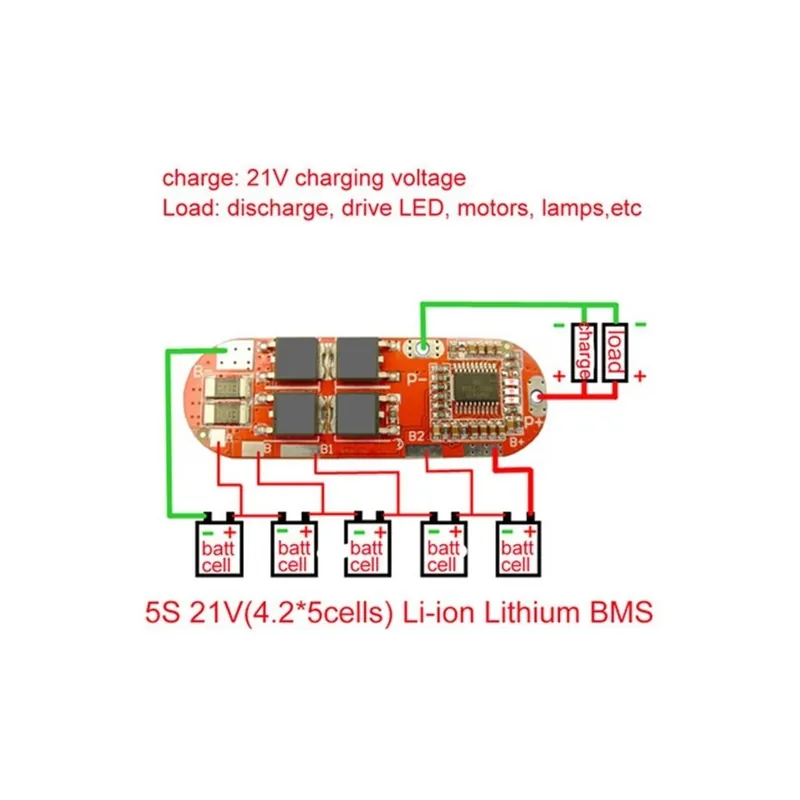

the video in this page is demonstrated for BMS 5S
1PCS BMS 25A 3S 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Circuit Charging Board Module PCM Polymer Lipo Cell PCB
