Block highlights:

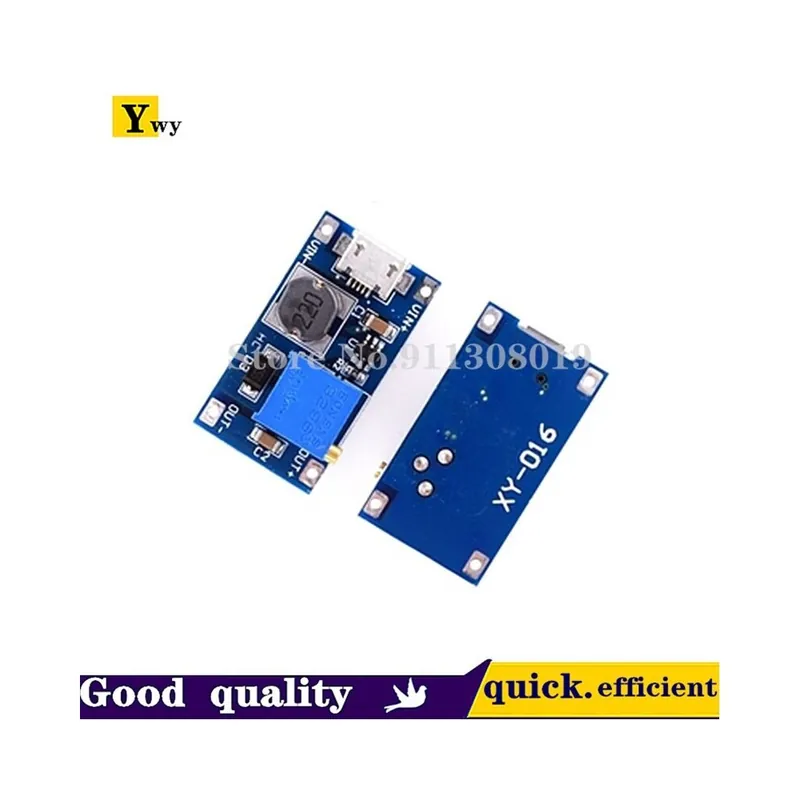

The smallest adjustable boost module in the entire network can be easily installed in various small devices.
MicroUSB input can be used, and the common voltages of 9V, 12V, 15V, 18V, 24V can be easily obtained through the mobile phone data line with a USB charger or a mobile power supply, which is very convenient to use.
Ultra-wide input and output voltage, ultra-high conversion efficiency.
Module characteristics
1) Maximum output current: 2A (recommended to use within 1A)
2) Input voltage: 2 v–24 v
3) Maximum output voltage:> 28 v (recommended to be used within 26V)
4) Efficiency:> 93% (efficiency is related to the pressure difference between input and output)
5) Size: 30mm* 17mm* 14mm (length * width * height)
Precautions
1) This module is a boost module, and the output voltage must be greater than the input voltage
2) Peak current output current does not exceed 2A
